F-220 CAFS

F-220 CAFS: MORE POWERFUL THAN YOU THINK

F-220 CAFS MORE POWERFUL THAN YOU THINK

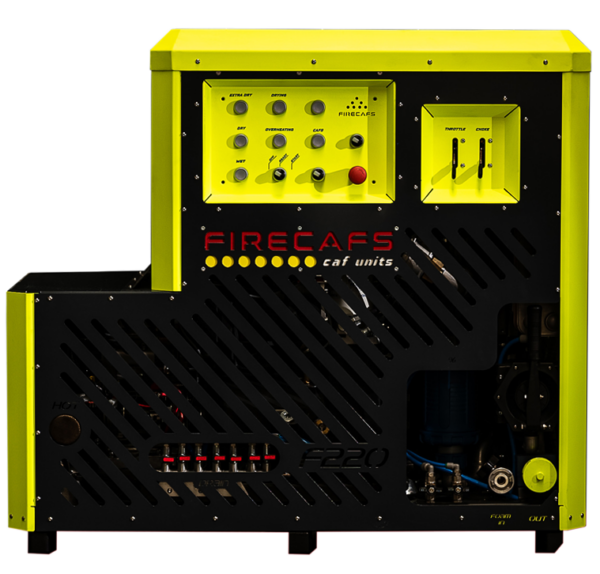

DESCRIPTION

F-220 cafs is a stand alone multipurpose unit cafs equipped with B&S Vanguard gasoline engine, centrifugal pump, proportioner, compressor and foam generator.
It is designed for installation in vehicles which do not have a PTO and to use as stand alone unit in industries, boats, heliports and airports . Due to its compact design and its low weight the system is a multipurpose unit.
It is ideally suited for installation in vans, on pick-ups, on speed boats, on trailers or as stationary unit. The unit need only water and foam to run. Foam can be supplied from a dedicated tank on the skid-unit or from external can or container.

CONFIGURATIONS

STAND ALONE UNIT

stand alone cafs unit

it is possible to use as stationary unit in companies, ports, heliports or as fire extinguishing system on boats

PICKUP, VAN, TRAILER SKID-UNIT

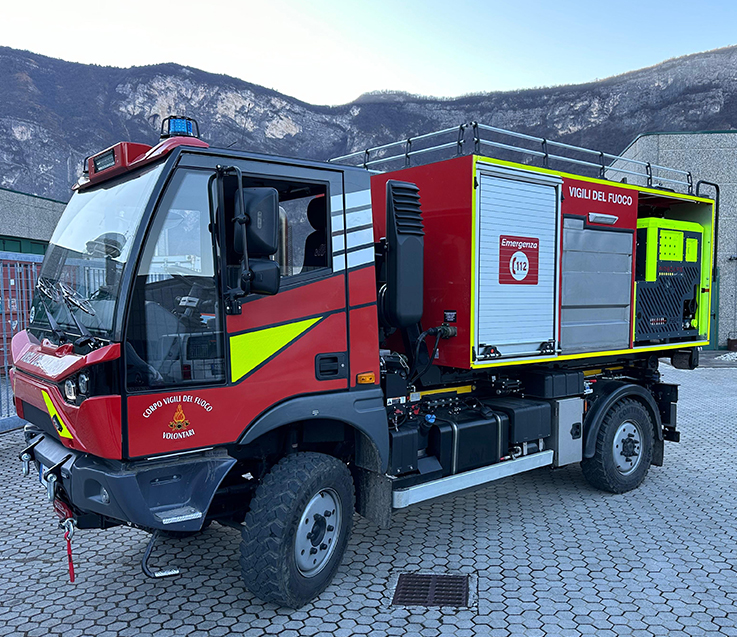

f-220 cafs truck installation

it is possible to add this unit on vehicles. Each unit can be built and configured
with many different accessories

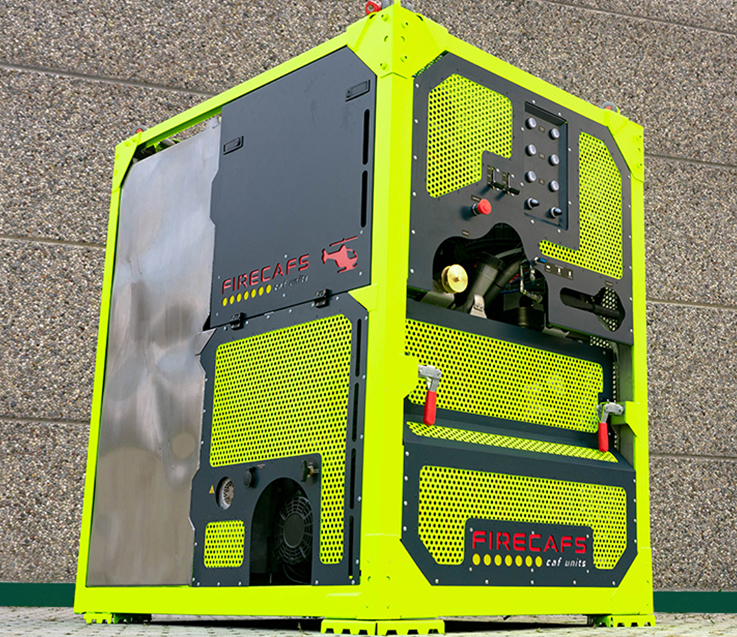

MULTIPURPOSE UNIT

it is possible to implement  the F-220 cafs unit with water tank and helicopter frame and make the F-220 MULTIPURPOSE CAFS UNIT. it can be installed on  board of pickups, vans trucks or trailers and can be picked up from an helicopter.

TECHNICAL INFO

WATER TANK: not included
FOAM TANK: 25 LITERS
FUEL TANK: 9 + 22 LITERS
WEIGHT WITHOUT WATER: 280 KG
DIMENSIONS: length 1200 x width 600 x height 1100 mm

CAFS INFO

COMPLIES WITH EUROPEAN STANDARDS EN 16327:2014: CAFS 200 and EN 16327:2014: PPPS200
CAF DISCHARGE FLOW: 220 l/min @ 8 bar (shutdown effectiveness such as 1540 l/min of water alone)
HOSE CONNECTION FOR CAFS OUTPUT: 1,5”
SUCTION INLET FOR WATER SUPPLY: 1,5”
TANK FILLING: 2”
EXPANSION RATIO: Approx. 6 (wet foam), Approx. 20 (extra dry foam)
WORKING PRESSURE: Max. 10 bar
TYPE OF FOAM: Extra Dry, Dry, Wet, Only water + foam

FOAM PROPORTIONAL SYSTEM INFO

FOAM PROPORTIONAL MIXER: Water-hydraulically driven, From 0,3% to 2,5% steplessly adjustable @ 8 bar
PUMP: Proportional dosing pump

WATER PUMP INFO

TYPE: Centrifugal Pump
STAGE: 2
BODY: Aluminium
IMPELLERS: Bronze
NOMINAL FLOW: > 240 l/min PRESSURE: > 10 BAR
PRIMING: Diaphragm Hand Pump

OPTIONAL

WASHING SYSTEM
DRYING SYSTEM
REMOTABLE CONTROL SYSTEM

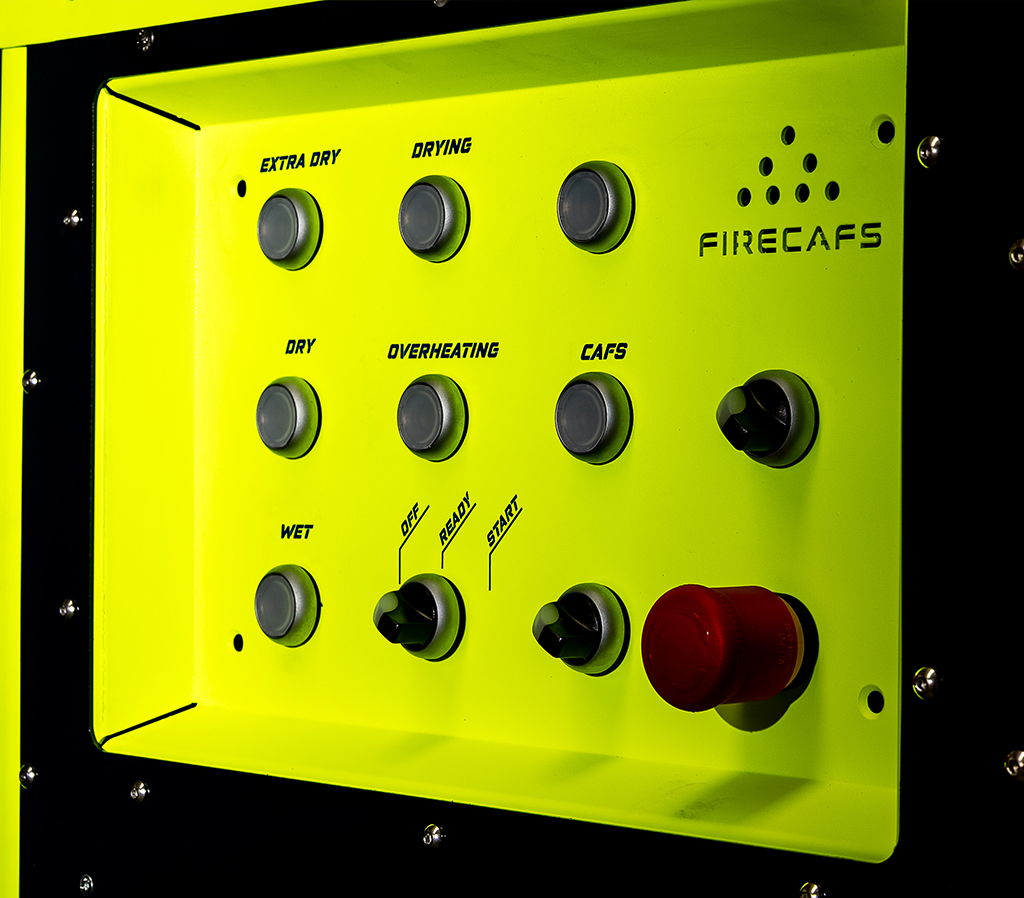

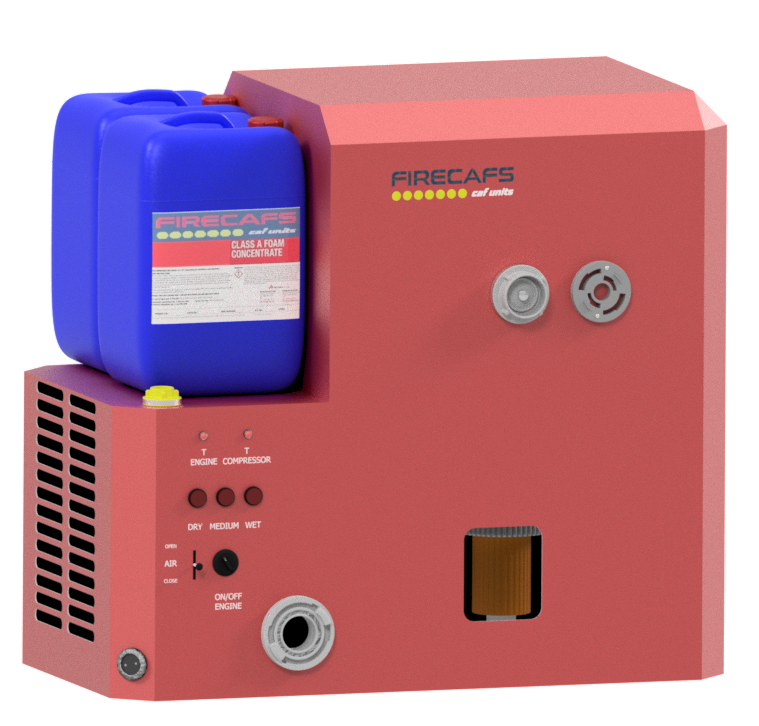

firecafs portable cafs unit detail

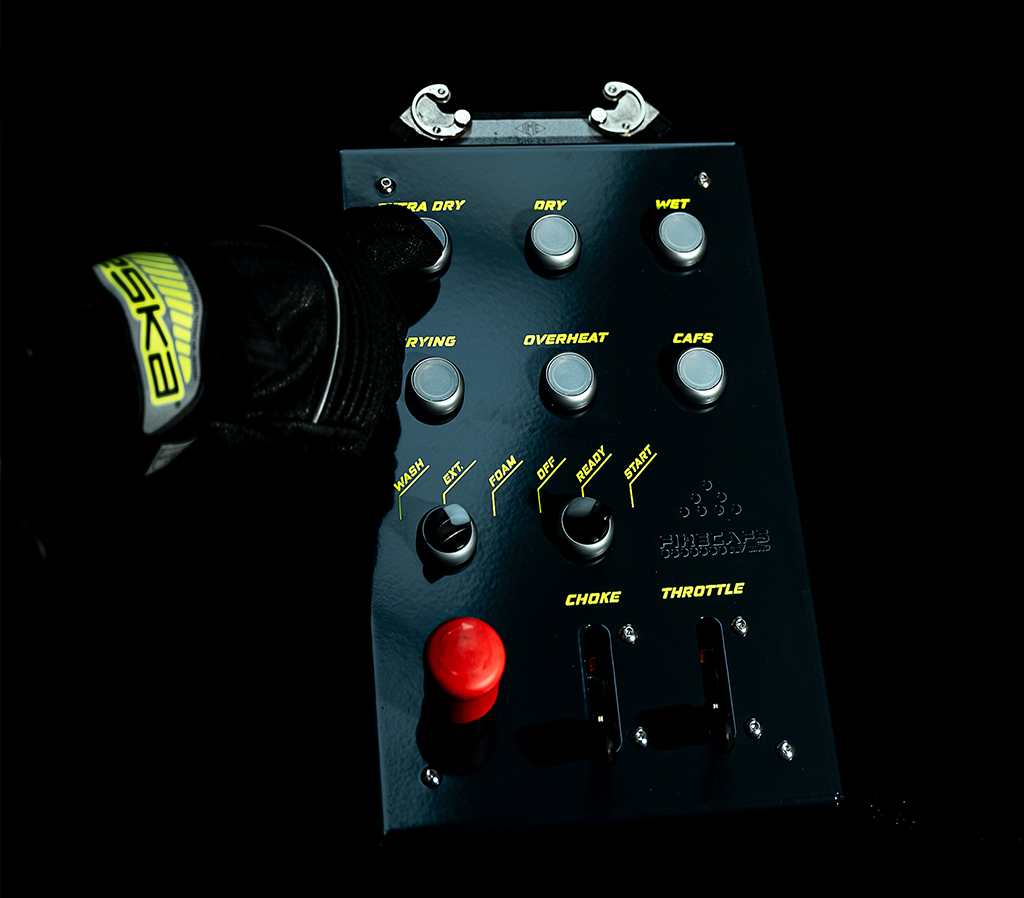

remotable control unit cafs unit

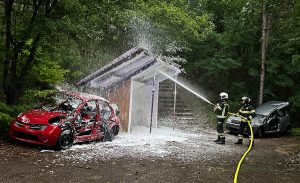

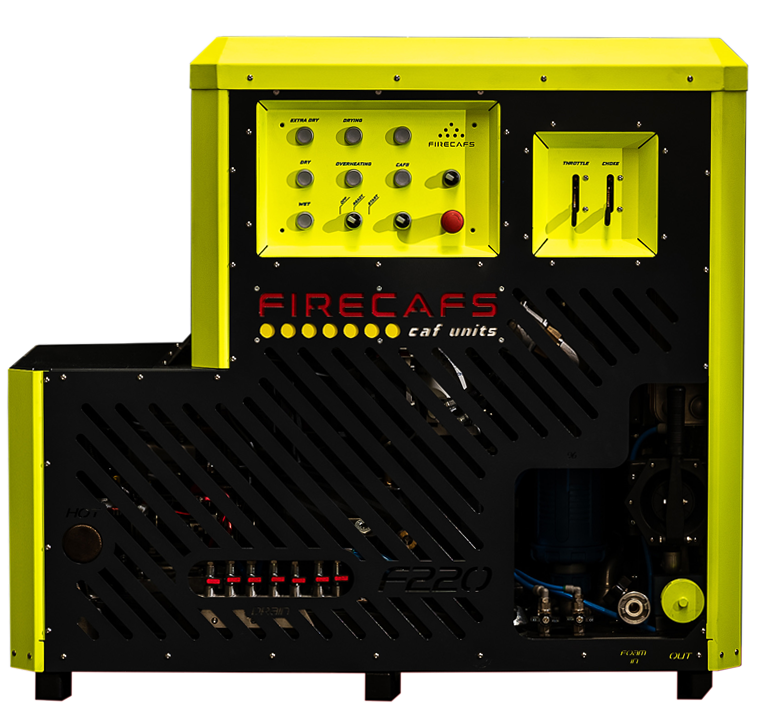

CAFS F-220
CAFS F-220

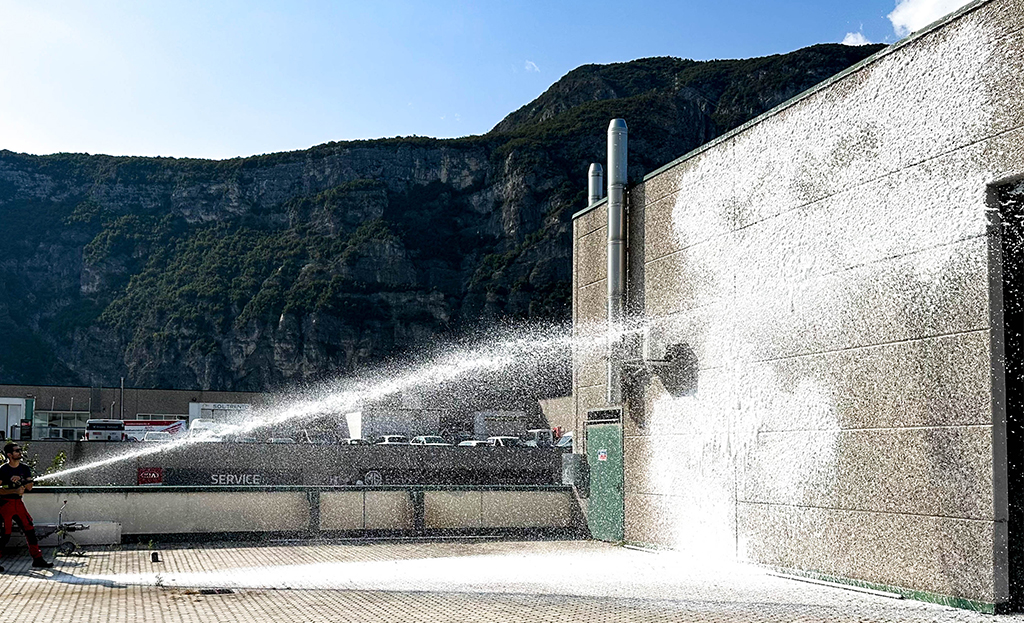

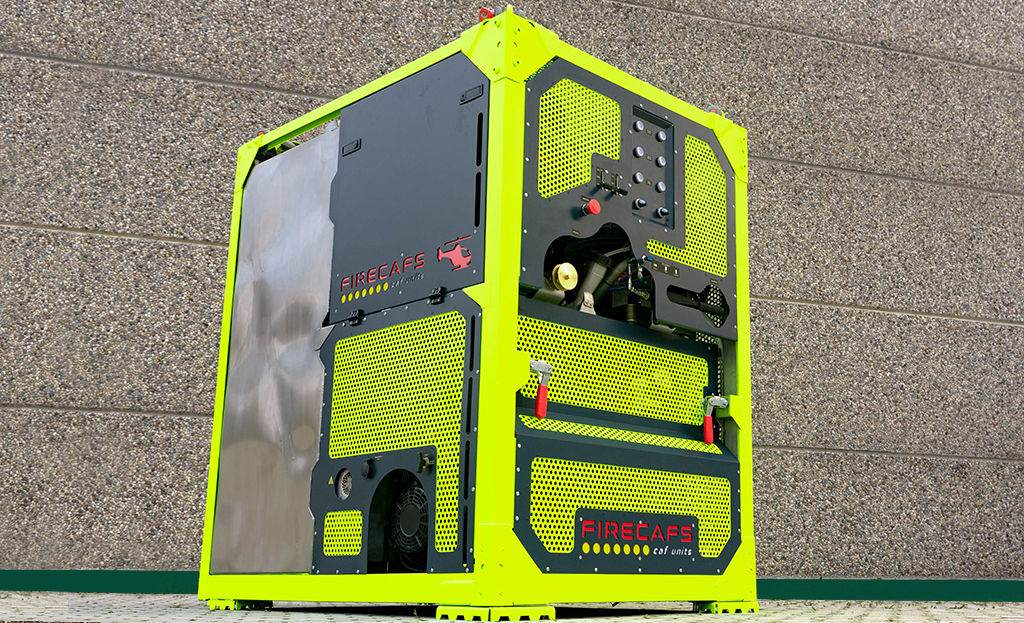

F-220 HELI-TRANSPORT UNIT
F-220 HELI-TRANSPORT UNIT
HELI-TRANSPORT CAFS UNIT F-220
HELI-TRANSPORT CAFS UNIT F-220
extra dry foam cafs firecafs oneseven godiva hale waterous rosenbauer ziegler
extra dry foam cafs
medium dry foam on a tree firecafs oneseven godiva hale waterous
medium dry foam cafs
medium dry foam blanket cafs firecafs oneseven godiva hale waterous
medium dry foam blanket cafs
wet foam cafs on a tree firecafs oneseven godiva hale waterous
wet foam cafs

ACCESSORIES

NOZZLE AND TIPS

The shut-off device has many differents and inter-changeble tips ideally suited for the use of compressed air foam as an extinguishing agent. From 1/2” to 1 1/4”

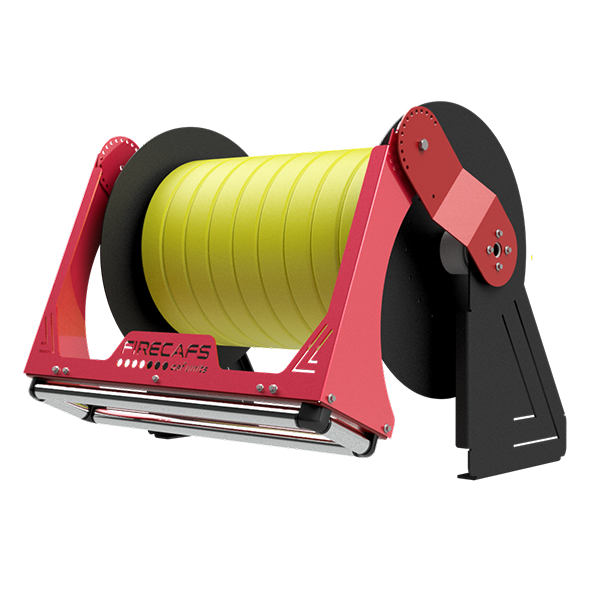

RAPID INTERVENTION HOSE REEL

electric reel 12 v dc firetruck fireman

It is possible to add the rapid intervention electric and manual rewind hose reel on skid-unit or vehicles.
Main features:
• Extractable roller guide tube: The hose guard folds out over the vehicle‘s outline and ensures that the hose does not touch the vehicle and prevents damages.
• Brake
• Clutch
• Internal electric drive
• Easy rewind

HOSES

High quality and high visibility hoses 25, 45 and 70 mm
Main features:
• High visibility
• Light-weight
• Flexible
• High abrasion resistance
• Small friction loss

LED WORK LIGHT

It is possible to add a single led light at the Firecafs unit with harness and toggle switch can be set in control panel

LED TOWER LIGHT

Dual led light head telescopic tower with harness and toggle switch can be set in control panel

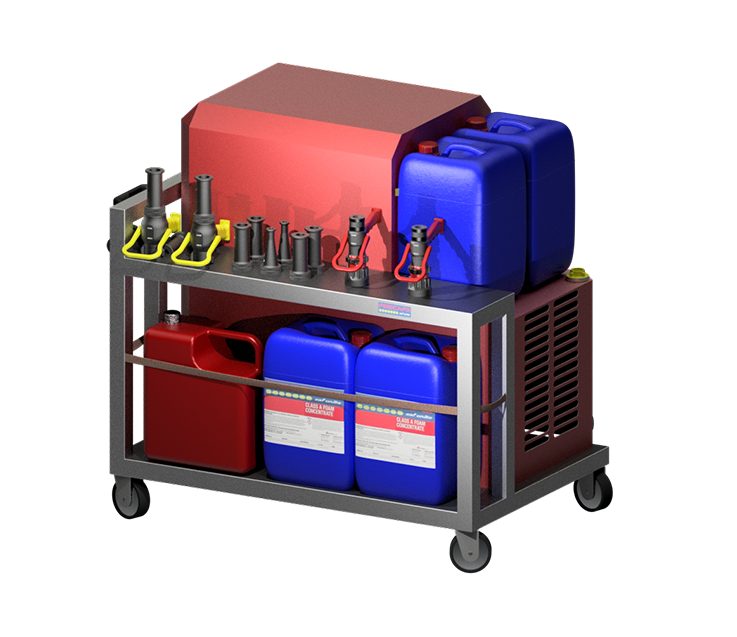

MOBILE CONTAINER

The mobile container is built with aluminium profiles. It make easyer to move the unit

ELECTRIC FOAM PUMP

Electiric foam pump to refill the foam tank on the truck or skid-unit. Available 12, 24 V DC or 110, 220 AC or US version

FOAM

The exceptional high quality foam in association with Firecafs foaming system guarantee an
optimal extinguishing and cooling effect of the Firecafs foam

cafs F-220 firecafs, cafs unit with pump

FIRECAFS FOAM AND CONCENTRATION

Firecafs foaming agents have been especially developed for the production of compressed air foam. Threefold firefighting due to cooling, isolation and seperation effect. Unmatched penetration for extinguishing depth and low foaming agent consumption.

  • WHERE: Firecafs foams can be used everywhere: in structural fire extinguishing, road accidents, oil and gas, industry, aviation, recycling, warehouse, boats, exposure protection and wildland fires.
  • CONCENTRATION: Firecafs foams are good at wetting and cooling fuels, suppressing flammable vapors and reducing smoke.
    Firecafs foams also has an opaque surface to reflect heat, creates insulating bubbles, holds water on any surface, is biodegradable and has low mix ratios from 0.1 percent to 1 percent.
  • SPECIAL FEATURES: Firecafs foams increases the ability of water to penetrate fuel sources as much as 1,000 times better by reducing surface tension.
    Firecafs foams enhances water’s ability to cool by as much as 300 percent
  • OTHER FEATURES: Low proportioning rates for long operation times and cost-saving consumption, mixable with fresh water, brackish water and sea water, very good biodegradability of the fluorine-free extinguishing foams

FOAMS

A PLUS – 0,3%

Firecafs A PLUS foam can be used
in a concentration range of:
0,1-0,3% as wetting agent
0,3-2% as foaming, with potable, sea or brackish water for Class A (solid) fires and Class B (hydrocarbon fuels)

A – 0,1-1%

Firecafs A foam can be used at 0,1-3% for Class A fires.
When adding the foam in concentrations as low as 0,1%, the aqueous solution receives excellent wetting characteristics

A-B – 1%

Firecafs Foam A-B  class is fluorine free, low viscosity, newtonian foam concentrate to extinguish hydrocarbon fuels fires and solids.
Concentration class A and B: 1%
